Show and Tell

When the leaves start to turn color and the weather begins to cool off during mid-October, what better time of year to carve some leaves?  Thank you to the Woodworkers Guild of Georgia for help that made it possible for me to participate in a power carving class taught by Sammy Long.  The class was a four-day workshop that was arranged by the Atlanta Woodturners Guild and was held at Woodcraft.

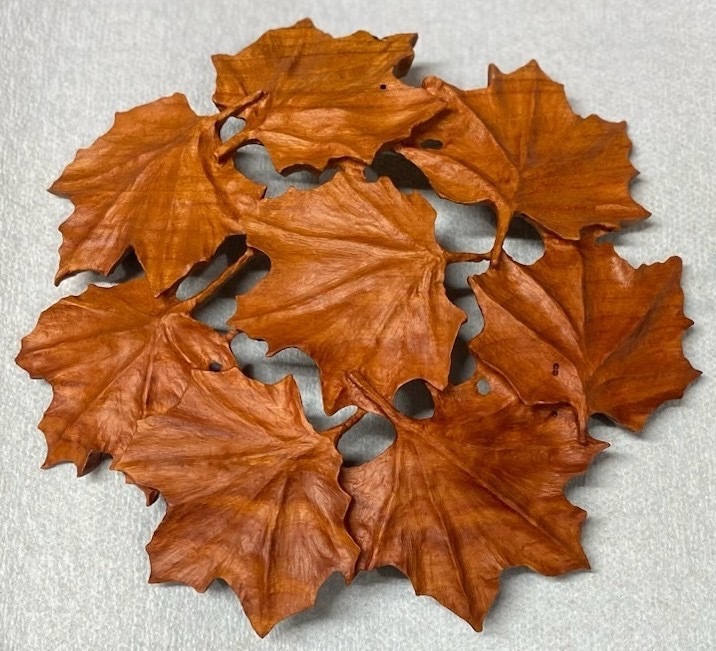

The focus of the class was using a micromotor to power carve a disk so that it looked like a slightly domed circle of leaves.  For those not familiar, a micromotor is a rotary cutting device similar to a Dremel rotary tool.  Where a Dremel typically turns at about 15,000 rpm, a micromotor runs at a range of 20,000 to 50,000 rpm, has variable speed, and quick change of the cutting bits, called burs.

The class started with handing out a kit of tools that Sammy had prepared for each student which included Sharpie markers, an X-ACTO knife, a brass bristle brush, pen and pencil, and a chip brush to remove dust.  While this might not seem significant, several of these items turned out to be specific to the process and important that each student had available for use.  Next step was the process of making a leaf patterned template from heavy rubber shower liner material.  Students then used that leaf template to layout multiple overlapping leaves across the whole disk.  Sammy’s experienced guidance helped us avoid design choices that would make carving very difficult later.  From that point through to the finished object, Sammy had prepared a series of seven disks that represented different stages of the process.  These along with some handouts outlining the process were tremendously helpful with visualization and as references as Sammy demonstrated the process steps and students needed to refresh their understanding of where they were in the process.

I would not describe the classroom at Woodcraft as an ideal venue for eleven students to do power carving, which produces enough dust to create a hazardous environment in a short time.  Fortunately, Sammy’s experience with teaching this class and most of the students having some experience with power carving combined to overcome the facility challenge and resulted in an outstanding experience.  Students were encouraged to bring their own small table, and a comfortable height-adjustable chair so that they would not have to work uncomfortably at the taller work benches.  In addition, most of the students brought their own tabletop dust collection systems that helped tremendously with the air quality in the room.  With eleven students in the class, and it was very cozy.  However, the small personal tables enabled small workstations.  While the setting was cozy, everyone had enough room to work without feeling cramped.

Sammy’s knowledge of the process and techniques were critical to everyone’s success.  His flexible and easy-going teaching style helped build confidence.  His experience in teaching the class was invaluable to preparing for us to have a successful experience.  I would strongly recommend that if you are interested in power carving and you have an opportunity to take a class with Sammy Long, don’t hesitate to sign up. You’ll enjoy the experience!  Thanks again to the Woodworkers Guild of Georgia.

I have often admired end grain cutting boards that I have seen at farmers markets and craft shows. The depth of color and variation is mesmerizing. Even though I could likely figure out how to make one on my own, I decided to take a class. The class was offered by Woodcraft of Atlanta and taught by Milton Miller. This was a 2-evening class om 6:00 to 9:00 PM. All materials and supplies were included.

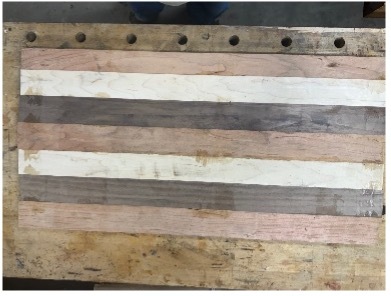

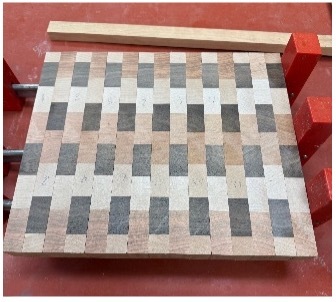

The class started with some fundamentals of end-grain vs face grain as well as shop safety. The steps to making the cutting board were discussed along with need to use precisely milled lumber. Pieces of maple cherry and walnut were pre-milled to approximately 1”x2”x24”. Each student selected 7 pieces of wood. I selected 2 walnut, 2 maple and 3 cherry bords. The next step was to glue the boards together to make a single striped plank that was about 12” wide by 24” long (Figure 1). This was left to cure for approximately 30 minutes. The evening continued with scraping off any glue squeeze out and running the plank through the drum sander to ensure that the surfaces were smooth and parallel. The next step was to cut strips off of the plank that were about 1 ½”, the desired thickness of the cutting board. Once these pieces were cut, they were laid out with the end grain facing up (Figure 2). This was followed by rotating every second piece by 180 degrees to create the final pattern of the cutting board. From there it was back into the clamps for the second and final glue up. This concluded the first evening.

The second evening started with removing the clamps and getting the first good look at the cutting board. The board was flat but needed extensive sanding. This started with the drum sander and continued with a random orbit sander and ended with hand sanding. We used a router to round over all of the corners. We finished the evening with Aquacoat grain filler and Osmo hard wax oil to the cutting board. The sanding and finishing process was very time-consuming but the final product was absolutely stunning.

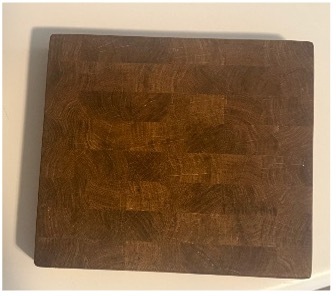

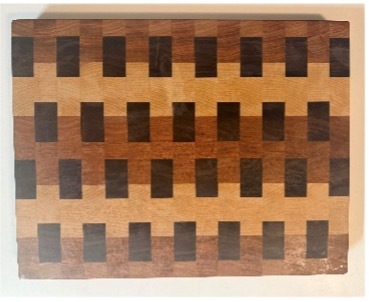

Since taking the class, I have made 2 additional end grain cutting boards out of oak (Figure 4) and I have 3 more in progress for Christmas presents. This was a very good class and I would highly recommend it.
